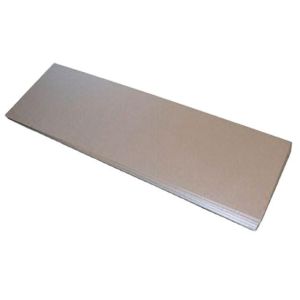

ASTM B265 Grade 5 Titanium Alloy Sheet
1. Titanium plate advantage:
1. Titanium plate is the surface of the oxide film is equivalent to
a good long-term wear-resistant release agent, the use of titanium
plate to save the separation agent, so that easy to peel off the
plate, eliminating the pre- treatment process, The board is lighter
than the copper plate.
2. Titanium plate of the life of copper plate is more than 3 times,
according to operating conditions up to 10 to 20 years
3. With titanium plate made of electrolytic copper crystal
structure dense, smooth surface, excellent quality.
4. Since the titanium plate does not need to apply the separating
agent, it can avoid the pollution of the copper electrolyte.
5. To improve production capacity to reduce the cost of
electrolytic copper production,which has a better economic
benefits.
2. Process introduction:
Hot rolling : the process of rolling at temperatures higher than
those of recrystallization.
The rolling process in which the plastic deformation temperature of
a cold rolling is lower than the recovery temperature.
Annealing: a process in which metals are heated slowly to a certain
temperature, held for a sufficient time, and then cooled (usually
slowly, sometimes by controlled cooling) at an appropriate rate.
Pickling: to immerse the parts in an aqueous solution of sulfuric
acid, etc., so as to remove the oxide and other thin films on the
surface of the metal.Is the plating, enamel, rolling process such
as pre - or intermediate treatment.
3 Physical and chemical properties :
Mechanical Property |
Grade | Tensile strength | Yeild strength | Elongation |
| MPa | kis | ksi Mpa | ksi Mpa | % |
Gr 2 | 345 | 50 | 40(275) | 65(450) | 20 |
Gr 5 | 895 | 130 | 828 | 120 | 10 |
Gr 7 | 345 | 50 | 40(275) | 65(450) | 20 |
Gr 9 | 620 | 90 | 70(483) | ... | 15 |
4. Production Specification:
| Cold -rolling plate (Y state) | Thickness(0.3-0.4mm)×Width(400-2000mm)×L mm |
| Hold-rolling plate(R State ) | Thickness(4.0-30mm)×Width(400-3000mm)×L9000mm |
| Foil/Strip | Thickness(0.1-6.0mm )×Width(100-1500mm)×L mm |
| Surface | Acid picklingor Polished |
| Grade we can offer | Gr1 Gr2 Gr5 Gr7 Gr9 Gr12 |
| Standard we can offer | ASTM B265. ASTM F136 .ASTM F67 .AMS4911 .ASTM B38 |
