Titanium Wheel Bolt for Automobile Bicycle

Ask Lasest Price
Brand Name :	Changsheng
Model Number :	DIN
Certification :	ISO 9001;2015
Price :	0.5usd/pc
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	50T/MONTH
Delivery Time :	10-15days

Add to Cart

Product Details
Company Profile

Titanium Wheel Bolt for Automobile Bicycle

Titanium Wheel Bolt are available for purchase from many online stores and bike part retailers.

Titanium Wheel Bolt are usually sold in sets, and the sizes needed will vary depending on the bike, some of the most common sizes include M5, M6, and M8.

Titanium gr5 Wheel screw are highly resistant to corrosion, so they're great for outdoor use.

Titanium gr5 Wheel screw is also very lightweight and offer superior strength compared to other materials.

Titanium bolt for wheel are more expensive than steel bolts, but titanium bolt for wheel is worth the investment if you're looking for a lightweight, strong, and durable bolt.

Grade of Titanium Wheel Bolt for Automobile Bicycle

Grade 1 / pure titanium

Grade 2 / R50400

Grade 5 / ti-6al-4v / R56400

Grade 7 / R52400 contain palladium / Pd

Grade 23 / Grade 5 eli / RS6401

Chemical Composition and Mechanical Properties of Titanium Wheel Bolt for Automobile Bicycle

Grade	Tensile stength MPA	Yield strength MPA	Elongation %
Gr1	240	170	24
Gr2	345	275	20
Gr4	550	483	15
Gr5	895	828	10
Gr7	400	275	18
Gr9	620	483	15
Gr12	483	348	18
Gr23	793	759	10

Grade	Fe Max	O Max	N Max	C Max	H Max	Pd Max	Al Max	Va Max	Ni Max	Mo Max
/	Wt %	Wt %	Wt %	Wt %	Wt %	Wt %	Wt %	Wt %	Wt %	Wt %
Gr1	0.2	0.18	0.03	0.08	0.015
Gr2	0.3	0.25	0.03	0.08	0.015
Gr4	0.5	0.4	0.05	0.08	0.015
Gr5	0.4	0.2	0.05	0.08	0.015		5.5-6.7	3.5-4.5
Gr7	0.3	0.25	0.03	0.08	0.015	0.12- 0.25
Gr9	0.25	0.15	0.03	0.08	0.015		2.5-3.5	2.0-3.0
Gr12	0.3	0.25	0.03	0.08	0.015				0.6-0.9	0.2-0.4
Gr23	0.25	0.03	0.03	0.08	0.0125		5.5-6.5	3.5-4.5
Ti	Balance

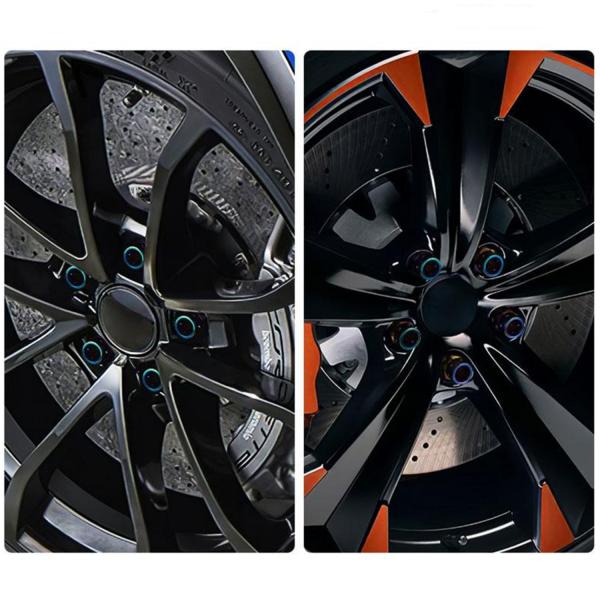

Customized Color Titanium Wheel Bolt for Automobile Bicycle

Applications of Titanium Wheel Bolt for Automobile Bicycle

Advantages of Titanium Wheel Bolt for Automobile Bicycle

1. High specific strength. The density of titanium is 4.51g/cm³, which is higher than aluminum but lower than steel, copper, and nickel, but its strength is much higher than other metals. Titanium Wheel Bolt for Automobile Bicycle made of titanium alloy are light and strong.

2. Good corrosion resistance. Titanium Wheel Bolt for Automobile Bicycle is stable in many media, and titanium alloy screws are suitable for various corrosive environments.

3. Good heat resistance and low temperature resistance. Titanium wheel screw can work normally in a high temperature of 600°C and a low temperature of minus 250°C, and can maintain their shape without changing.

4. Non-magnetic and non-toxic. Titanium wheel screw is a non-magnetic metal, and it will not be magnetized in a large magnetic field; it is not only non-toxic, but also has good compatibility with the human body.

5. Strong damping resistance. After Titanium gr5 Wheel screw is subjected to mechanical vibration and electrical vibration, compared with steel and copper metals, its own vibration attenuation time is the longest. Utilizing this performance, Titanium gr5 Wheel screw can be used as a tuning fork, a vibrating element of an ultrasonic pulverizer in medicine, and a vibrating film of a high-end audio speaker.
