Corrosion Resistant Seamless Titanium Capillary Tubing For Oil Feed Pipes

Ask Lasest Price
Brand Name :	Changsheng
Model Number :	Seamless Titanium Capillary Tubes
Certification :	ISO9001:2015
Price :	USD48.0/kg - USD51.0/kg
Payment Terms :	L/C, T/T
Supply Ability :	60 Tons per Month
Delivery Time :	3-5 work days

Add to Cart

Product Details
Company Profile

Corrosion Resistant Seamless Titanium Capillary Tubing For Oil Feed Pipes

Corrosion Resistant Seamless Titanium Capillary Tubing for Oil Feed Pipes

Tiny and small diameter titanium tubes also called titanium capillary tubes, high precision titanium capillary tubings are one of the characteristic products we exporting all over the world. Supplied in annealing state, Gr1 or Gr2 titanium tubes could be easily cutting, bending, welding, drilling, coloring and other usage that you need. Light weight, high strength, anti-corrosion, non-magnetic, biocompatibility, environmentallly friendly, recyclable are all the shining features of titanium tubes.

We offers an extensive range of titanium capillary tubes to meet the standards of critical applications in the oil and gas market. We supply Gr1 titanium capillary tube, Gr2 titanium capillary tube and Gr9 titanium capillary tube, these capillary tubings are widely used as radiating tubes, oil feed pipes or oil supply pipes, gas supply line, coolant lines as well as in aviation, medical, electonics, communication antenna tube, sports and many other fields. Titanium metal material has better corrosion resistance than stainless steel. It is particularly resistant to pitting, acid corrosion, and stress corrosion.

We offer the widest range of titanium tube and titanium pipe in Grade, dimensions and standards. Seamless Titanium Tube and Seamless Titanium Pipe dimension range is from a wall thickness as low as 0.25 mm and lengths up to 12000 mm by diameter of 1.5mm to 247mm. Besides round tubes, we also supply seamless square tubes and rectangular tubes. Contact us now for the latest in titanium tube prices and availability.

Titanium tube and titanium pipe are manufactured in compliant with international standards and specifications and under the highest level of quality control. Chemical composition, tensile strength, yield strength, elongation, and hardness are fully tested independently. At the same time, we can offer waterjet cutting, drilling, bending, bevel end finshing, welding and other services as per clients special requests.

Detailed Information of Titanium Capillary Tube
Material	Commercially Pure(CP) Titanium in Gr1 & Gr2, titanium alloy Gr9
Production Standard	ASTM B338, ASTM B861
Specification	As per client’s request.
Tube Surface	Pickling surface, Polished bright surface
Supply State	Annealed
Sample	Sample provides
Applications	Aviation, medical, marine, petrochemical, radiating tube, oil feed pipe, gas supply pipe, coolant lines, communication antenna tube, cooling pipe, heat exchange tubing, Jewelry, sporting goods, high precision electronics devices, etc,.

Titanium Tube Facotry Production Capability

The tabulation below provides a summary overview to the production capability.

Production standard: ASTM B338, ASME SB338, ASTM B861, ASME SB861
Titanium Grades: Gr 1, 2, 3, 4, 5(6Al-4V), 7(Ti-0.15Pd), 9(3Al-2.5V), 12, 23(6AL-4V ELI),etc,.
Titanium Tube Surface Finishes: Pickling, Polished, Grinded, Sandblasted
Services offered: Waterjet cutting, laser cutting, welding, shape cutting, drilling, bending, bevelling, etc,.

Material	Types	Specification	Grades
Titanium	Seamless and Round Tubes	ASTM B338 ASTM B861	Gr1/Gr2/Gr4/Gr5/Gr7/Gr9/Gr11/Gr12/Gr16/Gr17/Gr23,etc,.
Titanium	Seamless and Square Tubes	ASTM B861	Gr1/Gr2/Gr5/Gr9/Gr12
Titanium	Seamless and Rectangular Tubes	ASTM B861	Gr1/Gr2/Gr5/Gr9/Gr12

Mechanical Properties of of Titanium Pipe (Min.)

Grade	Alloy composition	Tensile strength		Yield strength		Elongation %
Grade	Alloy composition	ksi	Mpa	ksi	Mpa	Elongation %
GR1	Unalloyed Ti(Pure)35A-CP1	35	240	25	170	24
GR2	Unalloyed Ti(Pure)50A-CP2	50	345	40	275	20
GR4	Unalloyed Ti(Pure)80A-CP4	80	550	70	483	15
GR5	Ti 6Al 4V	130	895	120	828	10
GR7	Ti-Pd	50	345	40	275	20
GR9	Ti 3AI 2.5V	90	620	70	483	15F
GR12	Ti-0.3Mo-0.8Ni	70	483	50	345	18

Titanium tube and titanium pipe offer a combination of high strength, light weight, weldability, formability and corrosion resistance which have made it a most common used high temprature metal material for chemical processing, oil&gas, shipbuilding, aerospace industry, power plants, marine engineering, seawater desalination, sewage treatment, electroplating, metallury, metal fabricating industries.

Due to customization, please contact us for satisfying your individualized requirement!

Titanium Metal Products Characteristics

Titanum tube is used in a wide range of applications. It can be found in applications needing the very blending of weight and strength and harsh environment. Titanium tube and pipe characteristics can be summed up by:

Ti tube has an excellent corrosion resistance properties;
Ti tube has a low density and light weight;
Ti tube and pipe have high strength;
Titanium has high / low temperature resistance and excellent for use in extreme conditions;
Titanium is non-mangnetic, non-toxic;
Titanium is recyclable, environmentally friendly.

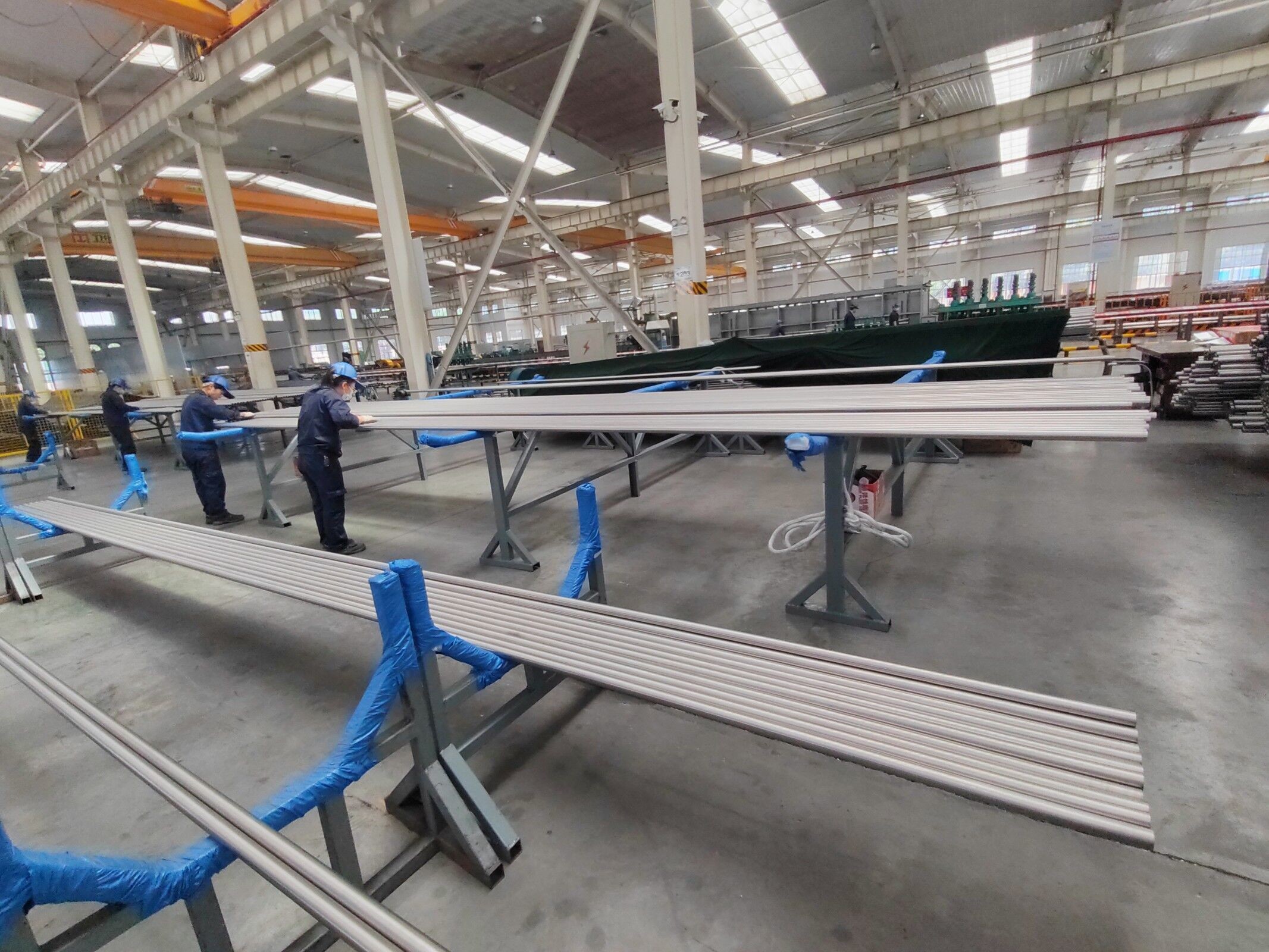

Titanium Tube Workshop

Corrosion Resistant Seamless Titanium Capillary Tubing For Oil Feed Pipes

Tags: Titanium Capillary Tubes, Oil Feed Titanium Pipe, Heat Exchanger Titanium Tubing
